Key Sert Range Kits
Keysert Range Kits

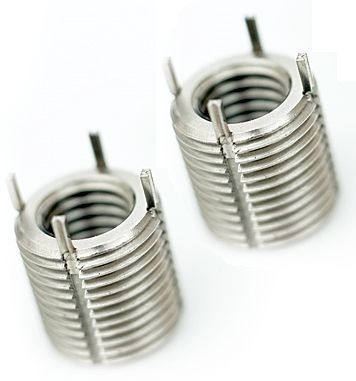

This solid, one piece insert is used to replace damaged, stripped or worn threads. Each Recoil Keysert features either 2 or 4 locking keys, which provide a positive mechanical lock preventing rotation or torsion.
Benefits:
- Reliable in the toughest conditions - including heavy wear and high vibration situations.
- Easy to remove and install with standard drills and taps.
- Available in carbon & stainless steel material and in metric & imperial sizes.
- Suitable for use in a wide range of materials, including aluminium and magnesium.
- An extensive choice of solid insert styles and installation tools available.
Note: Recoil Keyserts are not recommended for use in brittle materials like cast iron or plastic.
Click for more Keysert info.
Tooling-Only Range Kits
| Keysert Tool No. | Installs Inch Series (TW & HD) | Installs Metric Series (TW & HD) |
|---|
| 72190 |
#10 |
M5 |
| 72250 |
1/4" |
M6 |
| 72312 |
5/16" |
M8 |
| 72375 |
3/8"-7/16" |
M10 |
| 72500 |
1/2"-9/16" |
M12 |
| 72625 |
5/8" |
M16 |
| 72875 |
3/4"-7/8" |
M20-22 |
| 72100 |
1" |
N/A |

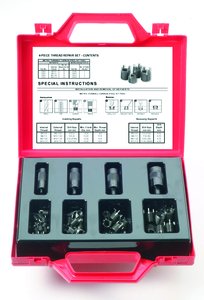

4-Piece Range Kits
UNC Carbon Steel Thinwall Range Kit Part No. KS-76003
| Size | Keysert Insert No. | No. of Pieces | Keysert Tool No. | No. of Pieces |
|---|
| 1/4-20 |
73041 |
12 |
72250 |
1 |
| 5/16-18 |
73051 |
12 |
72312 |
1 |
| 3/8-16 |
73061 |
12 |
72375 |
1 |
| 1/2-13 |
73081 |
6 |
72500 |
1 |
UNC Stainless Steel Thinwall Range Kit Part No. KS-76004
| Size | Keysert Insert No. | No. of Pieces | Keysert Tool No. | No. of Pieces |
|---|
| 1/4-20 |
73046 |
12 |
72250 |
1 |
| 5/16-18 |
73056 |
12 |
72312 |
1 |
| 3/8-16 |
73066 |
12 |
72375 |
1 |
| 1/2-13 |
73086 |
6 |
72500 |
1 |
Metric Coarse Carbon Steel Thinwall Range Kit Part No. KS-75003
| Size | Keysert Insert No. | No. of Pieces | Keysert Tool No. | No. of Pieces |
|---|
| M5-0.8 |
75051 |
12 |
72190 |
1 |
| M6-1.0 |
75061 |
12 |
72250 |
1 |
| M8-1.25 |
75081 |
12 |
72312 |
1 |
| M10-1.5 |
75101 |
12 |
72375 |
1 |
Metric Coarse Stainless Thinwall Range Kit Part No. KS-75004
| Size | Keysert Insert No. | No. of Pieces | Keysert Tool No. | No. of Pieces |
|---|
| M5-0.8 |
75056 |
12 |
72190 |
1 |
| M6-1.0 |
75066 |
12 |
72250 |
1 |
| M8-1.25 |
75086 |
12 |
72312 |
1 |
| M10-1.5 |
75106 |
12 |
72375 |
1 |
6-Piece Range Kits
UNC Carbon Steel Heavy-Duty Range Kit Part No. KS-70003
| Size | Keysert Insert No. | No. of Pieces | Keysert Tool No. | No. of Pieces |
|---|
| 1/4-20 |
73042 |
20 |
70042 |
1 |
| 5/16-18 |
73052 |
15 |
70052 |
1 |
| 3/8-16 |
73062 |
10 |
70062 |
1 |
| 1/2-13 |
73082 |
6 |
70082 |
1 |
| 5/8-11 |
73102 |
3 |
70102 |
1 |
| 3/4-10 |
73122 |
3 |
70122 |
1 |
UNF Carbon Steel Heavy-Duty Range Kit Part No. KS-71003
| Size | Keysert Insert No. | No. of Pieces | Keysert Tool No. | No. of Pieces |
|---|
| 1/4-28 |
74042 |
20 |
70042 |
1 |
| 5/16-24 |
74052 |
15 |
70052 |
1 |
| 3/8-24 |
74062 |
10 |
70062 |
1 |
| 1/2-20 |
74082 |
6 |
70082 |
1 |
| 5/8-18 |
74102 |
3 |
70102 |
1 |
| 3/4-16 |
74122 |
3 |
70122 |
1 |
UNC Stainless Steel Heavy-Duty Range Kit Part No. KS-70004
| Size | Keysert Insert No. | No. of Pieces | Keysert Tool No. | No. of Pieces |
|---|
| 1/4-20 |
73047 |
20 |
70042 |
1 |
| 5/16-18 |
73057 |
15 |
70052 |
1 |
| 3/8-16 |
73067 |
10 |
70062 |
1 |
| 1/2-13 |
73087 |
6 |
70082 |
1 |
| 5/8-11 |
73107 |
3 |
70102 |
1 |
| 3/4-10 |
73127 |
3 |
70122 |
1 |
UNF Stainless Steel Heavy-Duty Range Kit Part No. KS-71004
| Size | Keysert Insert No. | No. of Pieces | Keysert Tool No. | No. of Pieces |
|---|
| 1/4-28 |
74047 |
20 |
70042 |
1 |
| 5/16-24 |
74057 |
15 |
70052 |
1 |
| 3/8-24 |
74067 |
10 |
70062 |
1 |
| 1/2-20 |
74087 |
6 |
70082 |
1 |
| 5/8-18 |
74107 |
3 |
70102 |
1 |
| 3/4-16 |
74127 |
3 |
70122 |
1 |
Master Range Kits
UNC Carbon Steel Heavy-Duty Range Kit Part No. KS-73003
| Size | Keysert Insert No. | No. of Pieces | Keysert Tool No. | No. of Pieces |
|---|
| 1/4-20 |
73042 |
20 |
70042 |
1 |
| 5/16-18 |
73052 |
15 |
70052 |
1 |
| 3/8-16 |
73062 |
10 |
70062 |
1 |
| 7/16-14 |
73072 |
10 |
70072 |
1 |
| 1/2-13 |
73082 |
6 |
70082 |
1 |
| 9/16-12 |
73092 |
5 |
70092 |
1 |
| 5/8-11 |
73102 |
3 |
70102 |
1 |
| 3/4-10 |
73122 |
3 |
70122 |
1 |
| 7/8-9 |
73142 |
3 |
70142 |
1 |
| 1-8 |
73162 |
2 |
70162 |
1 |
UNF Carbon Steel Heavy-Duty Range Kit Part No. KS-74003
| Size | Keysert Insert No. | No. of Pieces | Keysert Tool No. | No. of Pieces |
|---|
| 1/4-28 |
74042 |
20 |
70042 |
1 |
| 5/16-24 |
74052 |
15 |
70052 |
1 |
| 3/8-24 |
74062 |
10 |
70062 |
1 |
| 7/16-20 |
74072 |
10 |
70072 |
1 |
| 1/2-20 |
74082 |
6 |
70082 |
1 |
| 9/16-18 |
74092 |
5 |
70092 |
1 |
| 5/8-18 |
74102 |
3 |
70102 |
1 |
| 3/4-16 |
74122 |
3 |
70122 |
1 |
| 7/8-14 |
74142 |
3 |
70142 |
1 |
| 1-12 |
74162 |
2 |
70162 |
1 |
UNC Stainless Steel Heavy-Duty Range Kit Part No. KS-73004
| Size | Keysert Insert No. | No. of Pieces | Keysert Tool No. | No. of Pieces |
|---|
| 1/4-20 |
73047 |
20 |
70042 |
1 |
| 5/16-18 |
73057 |
15 |
70052 |
1 |
| 3/8-16 |
73067 |
10 |
70062 |
1 |
| 7/16-14 |
73077 |
10 |
70072 |
1 |
| 1/2-13 |
73087 |
6 |
70082 |
1 |
| 9/16-12 |
73097 |
5 |
70092 |
1 |
| 5/8-11 |
73107 |
3 |
70102 |
1 |
| 3/4-10 |
73127 |
3 |
70122 |
1 |
| 7/8-9 |
73147 |
3 |
70142 |
1 |
| 1-8 |
73167 |
2 |
70162 |
1 |
UNF Stainless Steel Heavy-Duty Range Kit Part No. KS-74004
| Size | Keysert Insert No. | No. of Pieces | Keysert Tool No. | No. of Pieces |
|---|
| 1/4-28 |
74047 |
20 |
70042 |
1 |
| 5/16-24 |
74057 |
15 |
70052 |
1 |
| 3/8-24 |
74067 |
10 |
70062 |
1 |
| 7/16-20 |
74077 |
10 |
70072 |
1 |
| 1/2-20 |
74087 |
6 |
70082 |
1 |
| 9/16-18 |
74097 |
5 |
70092 |
1 |
| 5/8-18 |
74107 |
3 |
70102 |
1 |
| 3/4-16 |
74127 |
3 |
70122 |
1 |
| 7/8-14 |
74147 |
3 |
70142 |
1 |
| 1-12 |
74167 |
2 |
70162 |
1 |
