 Q™
Rivet Fastening System
Benefits:
- Good Shear Strength: Avdel Cherry
Q ™ Rivet mandrel plugs the entire
length of the rivet body, providing high shear strength values
for structural or load-bearing applications.
- Sealing Capability: Specially
designed mandrel is engineered to effect a weather-tight seal
when the rivet is installed properly.

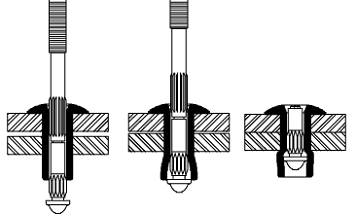

- Vibration Resistant: Rivet body curls
over end of mandrel to ensure its positive retention.
|
Countersunk Mandrel / Rivet
|
Protruding Head Mandrel / Rivet
|
Large Flange Mandrel / Rivet
Protruding - Large Flange - Countersunk Product Specifications
|
|
Nom. Rivet Diam.
|
Hole Size & Drill No.
|
S Mand. Diam.
|
D Rivet Diam.
|
Protruding
|
Large Flange
|
Countersunk
|
|
A
Head Diam.
|
B
Max. Head Thick.
|
A
Head Diam.
|
B
Max. Head Thick.
|
A
Head Diam.
|
B
Ref. Head Thick.
|
|
1/8" (3,2)
|
.129-.133 (#30) (3,28-3,38)
|
.075 (1,91)
|
.125 (3,18)
|
.250 (6,35)
|
.040 (1,07)
|
.375 (9,53)
|
.065 (1,65)
|
.226 (5,74)
|
.032 (0,81)
|
|
5/32" (4,0)
|
.160-.164 (#20) (4,06-4,17)
|
.094 (2,39)
|
.156 (3,96)
|
.312 (7,920)
|
.050 (1,27)
|
.469 (11,91)
|
.075 (1,91)
|
.281 (7,14)
|
.040 (1,02)
|
|
3/16" (4,8)
|
.192-.196 (#11) (4,88-4,98)
|
.114 (2,90)
|
.187 (4,75)
|
.375 (9,53)
|
.060 (1,45)
|
.625 (15,88)
|
.092 (2.34)
|
.344 (8,74)
|
.050 (1,27)
|
|
1/4" (6,4)
|
.257-.261 (F) (6,53-6,63)
|
.151 (3,84)
|
.250 (6,35)
|
.500 (12,70)
|
.080 (1,96)
|
.750 (19,50)
|
.107 (2,72)
|
.468 (11,89)
|
.071 (1,80)
|
*L - Length varies with each grip length (see following pages).
(1) Mandrels may be either smooth or serrated, manufacturer's option.
Rivet Shear and Tensile Strength lbs. f (N)
Tested per IFI 135
Q™ Rivet
|
|
Series AA Alum. Rivet Alum. Mand.
|
Series AS Alum. Rivet Steel Mand.
|
Series SS Steel Rivet Steel Mand.
|
Series MS Monel Rivet Steel Mand.
|
Series FF Stain.
Rivet Stain. Mand.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note: This table reflects typical results in
test parameters.

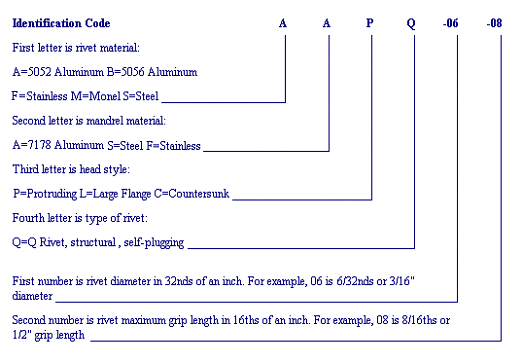

Series AA Aluminum Rivet Aluminum Mandrel and Series AS Aluminum Rivet
Steel Mandrel, Plated
|
Rivet Diam.
|
G Grip Range
|
L Rivet Length Max.
|
Series AA Aluminum Rivet Aluminum Mandrel
|
Series AS Aluminum Rivet Steel Mandrel, Plated
|
|
Min.
|
Mid.*
|
Max.
|
Prot. Head
|
Lrg. Head
|
Ctsk. Head
|
Prot. Head
|
Lrg. Head
|
Ctsk. Head
|
|
1/8" (3,2)
|
|
|
.062 (1,57)
|
.212 (5,38)
|
AAPQ-04-01
|
|
|
ASPQ-04-01
|
|
|
|
.063 (1.60)
|
.093 (2,36)
|
.125 (3,18)
|
.275 (6,99)
|
AAPQ-04-02
|
AALQ-04-02
|
|
ASPQ-04-02
|
ASLQ-04-02
|
|
|
.094 (2,39)
|
.125 (3,18)
|
.187 (4,75)
|
.337 (8,56)
|
AAPQ-04-03
|
|
AACQ-04-03
|
ASPQ-04-03
|
|
ASCQ-04-03
|
|
.126 (3,20)
|
.187 (4,75)
|
.250 (6,35)
|
.400 (10,16)
|
AAPQ-04-04
|
AALQ-04-04
|
AACQ-04-04
|
ASPQ-04-04
|
ASLQ-04-04
|
ASCQ-04-04
|
|
.188 (4,78)
|
.250 (6,35)
|
.312 (7,92)
|
.462 (11,73)
|
AAPQ-04-05
|
|
AACQ-04-05
|
ASPQ-04-05
|
|
ASCQ-04-05
|
|
.251 (6,38)
|
.312 (7,92)
|
.375 (9,53)
|
.535 (13,59)
|
AAPQ-04-06
|
AALQ-04-06
|
AACQ-04-06
|
ASPQ-04-06
|
ASLQ-04-06
|
ASCQ-04-06
|
|
.313 (7,95)
|
.375 (9,53)
|
.437 (11,10)
|
.602 (15,29)
|
AAPQ-04-07
|
|
AACQ-04-07
|
ASPQ-04-07
|
|
ASCQ-04-07
|
|
.376 (9,55)
|
.437 (11,10)
|
.50 (12,70)
|
.670 (17,02)
|
AAPQ-04-08
|
AALQ-04-08
|
AACQ-04-08
|
ASPQ-04-08
|
|
ASCQ-04-08
|
|
5/32" (4,0)
|
.062 (1,57)
|
.093 (2,36)
|
.125 (3,18)
|
.300 (7,62)
|
AAPQ-05-02
|
|
|
ASPQ-05-02
|
ASLQ-05-02
|
|
|
.126 (3,20)
|
.187 (4,75)
|
.250 (6,35)
|
.425 (10,80)
|
AAPQ-05-04
|
AALQ-05-04
|
AACQ-05-04
|
ASPQ-05-04
|
ASLQ-05-04
|
ASCQ-05-04
|
|
.251 (6,38)
|
.312 (7,92)
|
.375 (9,53)
|
.550 (13,97)
|
AAPQ-05-06
|
AALQ-05-06
|
AACQ-05-06
|
ASPQ-05-06
|
ASLQ-05-06
|
ASCQ-05-06
|
|
.376 (9,55)
|
.437 (11,10)
|
.500 (12,70)
|
.675 (17,65)
|
AAPQ-05-08
|
AALQ-05-08
|
AACQ-05-08
|
ASPQ-05-08
|
ASLQ-05-08
|
ASCQ-05-08
|
|
3/16" (4,8)
|
.062 (1,57)
|
.093 (2,36)
|
.125 (3,18)
|
.325 (8,26)
|
AAPQ-06-02
|
|
|
ASPQ-06-02
|
|
|
|
.126 (3,20)
|
.187 (4,75)
|
.250 (6,35)
|
.450 (11,43)
|
AAPQ-06-04
|
AALQ-06-04
|
AACQ-06-04
|
ASPQ-06-04
|
|
ASCQ-06-04
|
|
.251 (6,38)
|
.312 (7,92)
|
.375 (9,53)
|
.575 (14,61)
|
AAPQ-06-06
|
AALQ-06-06
|
AACQ-06-06
|
ASPQ-06-06
|
ASLQ-06-06
|
ASCQ-06-06
|
|
.376 (9,55)
|
.437 (11,10)
|
.500 (12,70)
|
.700 (17,78)
|
AAPQ-06-08
|
AALQ-06-08
|
AACQ-06-08
|
ASPQ-06-08
|
ASLQ-06-08
|
ASCQ-06-08
|
|
.501 (12,73)
|
.562 (14,27)
|
.625 (15,88)
|
.850 (21,59)
|
AAPQ-06-10
|
AALQ-06-10
|
AACQ-06-10
|
ASPQ-06-10
|
ASLQ-06-10
|
ASCQ-06-10
|
|
.62 (15,90)
|
.687 (17,45)
|
.750 (19,05)
|
.980 (24,89)
|
AAPQ-06-12
|
AALQ-06-12
|
AACQ-06-12
|
ASPQ-06-12
|
ASLQ-06-12
|
ASCQ-06-12
|
|
.751 (19,08)
|
.812 (20,62)
|
.875 (22,23)
|
1.11 (28,19)
|
AAPQ-06-14
|
AALQ-06-14
|
AACQ-06-14
|
ASPQ-06-14
|
ASLQ-06-14
|
ASCQ-06-14
|
|
1/4" (6,4)
|
.062 (1,57)
|
.093 (2,36)
|
.125 (3,18)
|
.375 (9,53)
|
AAPQ-08-02
|
|
|
ASPQ-08-02
|
|
|
|
.126 (3,20)
|
.187 (4,75)
|
.250 (6,35)
|
.500 (12,70)
|
AAPQ-08-04
|
AALQ-08-04
|
AACQ-08-04
|
ASPQ-08-04
|
ASLQ-08-04
|
ASCQ-08-04
|
|
.251 (6,38)
|
.312 (7,92)
|
.375 (9,53)
|
.625 (15,88)
|
AAPQ-08-06
|
AALQ-08-06
|
AACQ-08-06
|
ASPQ-08-06
|
ASLQ-08-06
|
ASCQ-08-06
|
|
.376 (9,55)
|
.437 (11,10)
|
.500 (12,70)
|
.750 (19,05)
|
AAPQ-08-08
|
AALQ-08-08
|
AACQ-08-08
|
ASPQ-08-08
|
ASLQ-08-08
|
ASCQ-08-08
|
|
.501 (12,73)
|
.562 (14,27)
|
.625 (15,88)
|
.900 (22,86)
|
AAPQ-08-10
|
AALQ-08-10
|
AACQ-08-10
|
ASPQ-08-10
|
ASLQ-08-10
|
ASCQ-08-10
|
|
.626 (15,90)
|
.687 (17,45)
|
.750 (19,05)
|
1.03 (26,16)
|
AAPQ-08-12
|
AALQ-08-12
|
AACQ-08-12
|
ASPQ-08-12
|
ASLQ-08-12
|
ASCQ-08-12
|
|
.751 (19,08)
|
.812 (20,62)
|
.875 (22,23)
|
1.16 (29,46)
|
AAPQ-08-14
|
AALQ-08-14
|
AACQ-08-14
|
ASPQ-08-14
|
ASLQ-08-14
|
ASCQ-08-14
|
|
.876 (22,25)
|
.937 (23,80)
|
1.00 (25,40)
|
1.29 (32,77)
|
AAPQ-08-16
|
AALQ-08-16
|
AACQ-08-06
|
ASPQ-08-16
|
ASLQ-08-16
|
ASCQ-08-16
|
|
*NOTE: Q™ rivet mandrels break flush with rivet
head at midgrip (except -04-01s, which break at .062).
NOTE: ITEMS LISTED ON THESE PAGES REFLECT OUR MANUFACTURING
CAPABILITY.
